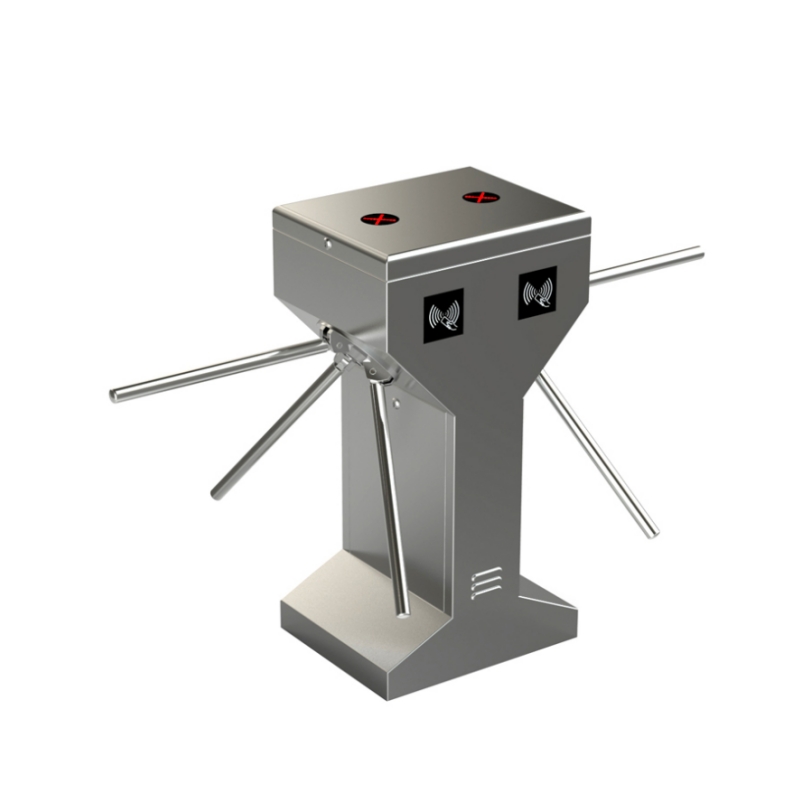

2 Lane Vertical Tripod Turnstile Gate

Technical Parameters

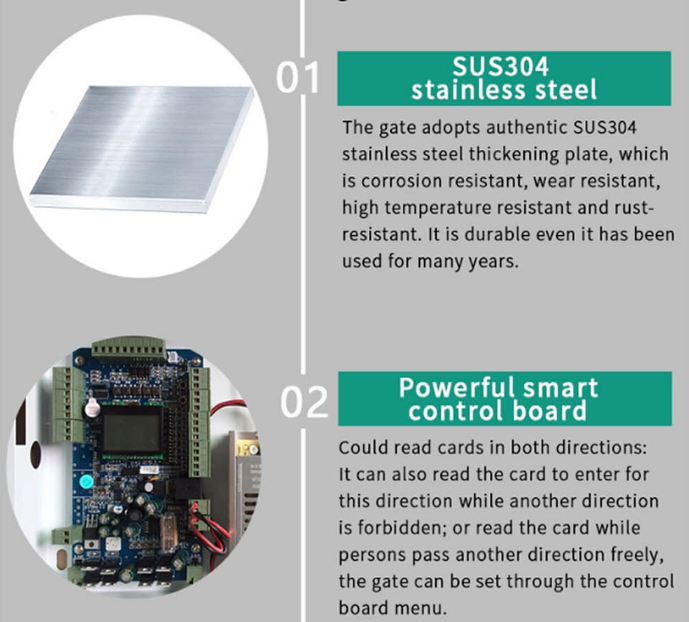

◇Composition of turnstile: chassis, movement, control board and power supply
◇Turn gate technology: bending, cutting, welding, polishing, grinding, etc.

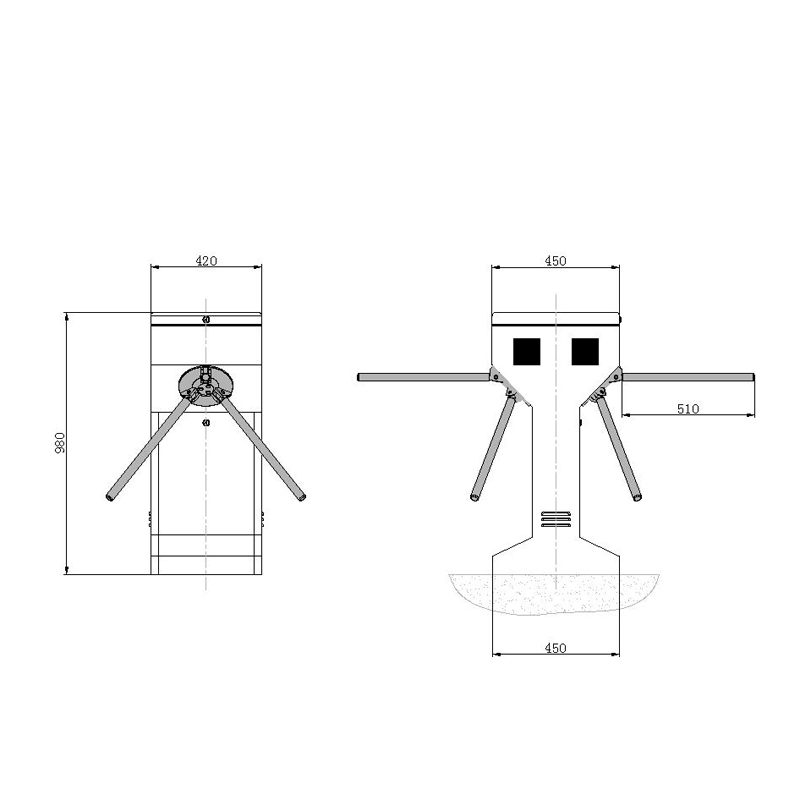

◇Dimensions: length×width×height=1200×280×980(mm)
◇Channel width: less than 600MM (maximum channel width 1200MM)
◇Length of brake lever: case 500MM
◇Weight: about 60Kg
◇Brake lever steering: one-way, two-way (optional)
◇Working driving force of brake lever: 3KG
◇Maximum bearing capacity of brake lever: 80KG
◇Passing mode: 1. Set one-way traffic in any direction; 2. Two-way free traffic; 3. Two-way prohibition;
◇Anti-reverse: with anti-reverse function to ensure one card for one person
◇Light reminder: high-brightness traffic status indication

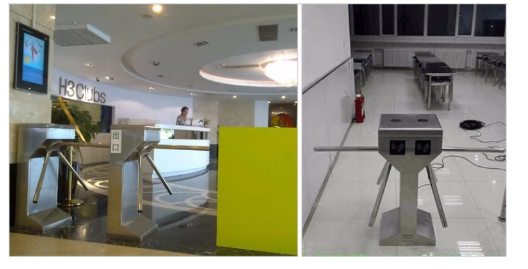

◇Working environment: indoor and outdoor (recommended to be equipped with rain shed)
◇Power supply voltage: input AC220V±10%, output DC24V, DC12V
◇Working core: 12V/20W DC motor
◇Ambient temperature: -15℃～70℃, relative humidity 5%-95%, non-condensing
◇Input interface: +12V level signal or DC12V pulse signal with pulse width＞100ms, drive current＞10mA
◇Motor power: DC motor 100W/24V
◇Relative humidity: less than 95% (no condensation)
◇Support card reader: barcode, ID/IC card, RFID card, second-generation ID card
◇Electromagnet drive: more than 3 million electromagnet operation tests
◇Waterproof rating: IP44;
◇Opening time: 0.2 seconds;
◇Passing speed: 40 people/minute;
◇Communication interface: RS485 (distance ≤1200 meters) or TCP/IP (optional);
◇Function: swiping card, free passage, button control passage, automatic induction passage, software control passage, etc.; (optional)
◇Control mode: semi-automatic, manual, fully automatic
We specialize in the production ofTripod-motorized-2-bolt-turnstile, a large supply of three-roll gates, the performance of the three-roll gates is stable, the three-roll gates are cost-effective, and the Tripod-motorized-2-bolt-turnstile are easy to realize
