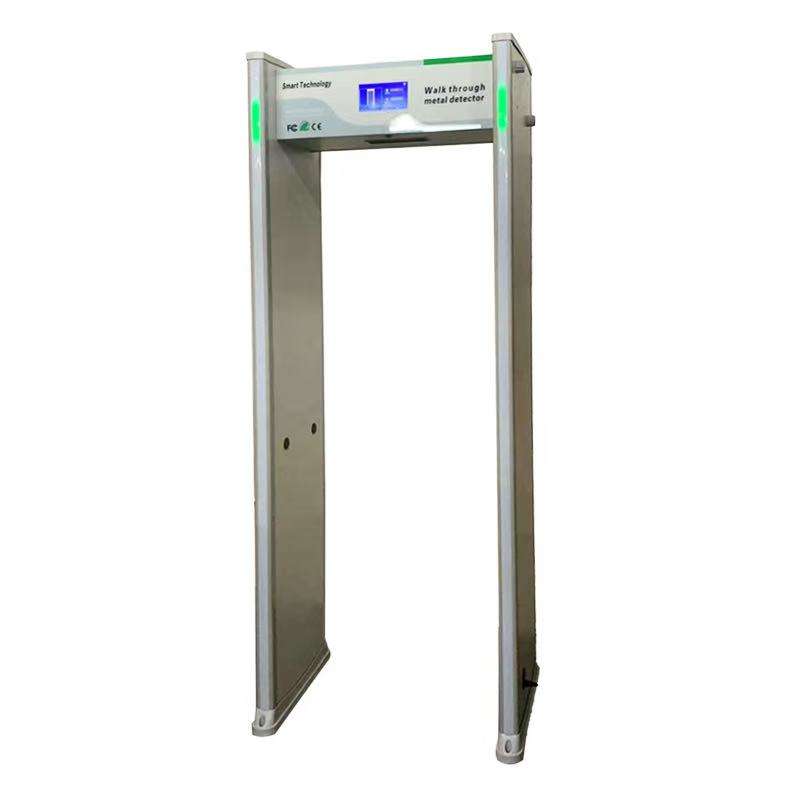

Details of 6 Zones Walk Through Metal Detector

Functions and features
Detection Zones: 6 zones, switchable according to application needs.
High Detection Accuracy: Capable of detecting small objects such as a 1 RMB coin (diameter: 25 mm).
Moisture & Dust Protection: Equipped with moisture-proof and dust-proof design, and features an automatic constant-temperature control system in the main unit.

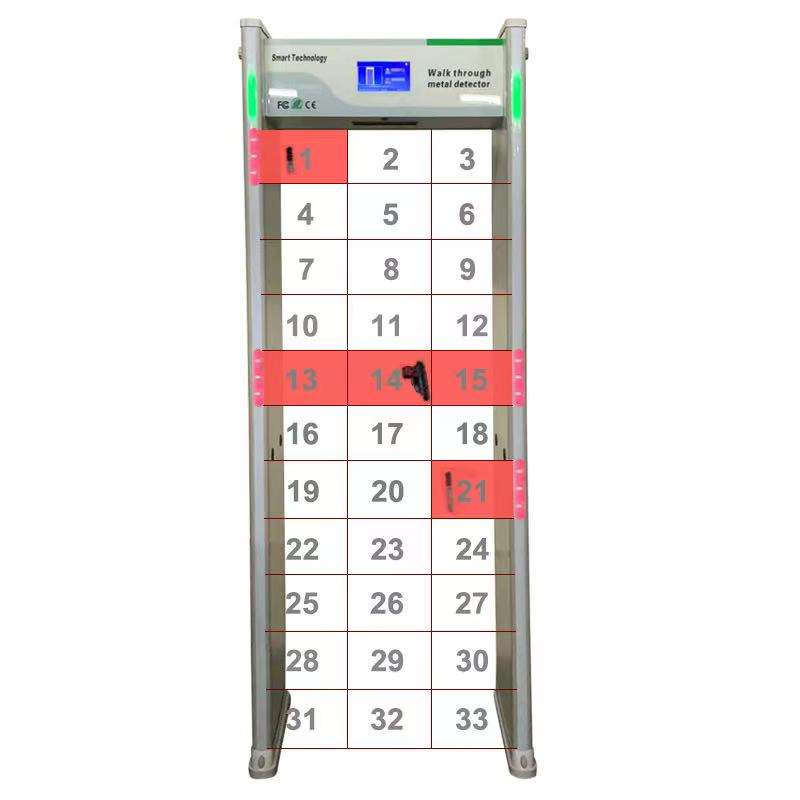

Zone Alarm Indication: 6 zone display; suspicious objects are accurately shown in their corresponding zones.
People Counting: Records the number of pass-throughs and alarm counts.
Safety for Users: Harmless to people with pacemakers, pregnant women, and magnetic storage media.
Adjustable Sensitivity: 200 levels of adjustable sensitivity to meet different detection requirements.
Durable Material: Door panels are made of fire-resistant and impact-resistant baked-paint PVC treated with special processing technology.
Alarm Zone Indicator Lights: High-brightness red digital indicators show pass count, alarm zones, and the location of prohibited items.
※Display Panel: High-brightness 7-inch touch LCD screen showing pass count, alarm count, and system settings.
※Operation Mode: Parameter settings can be adjusted via the control panel; password protection is available for system parameters.

Specifications:

Power: 240V-110V / AC 50~60HZ

Alarm wayAudio Alert, and LED Location lamp work at the same time
Detection Zone 1 zone
Display ways 8 status led display
Sensitivity 0-99 adjustable

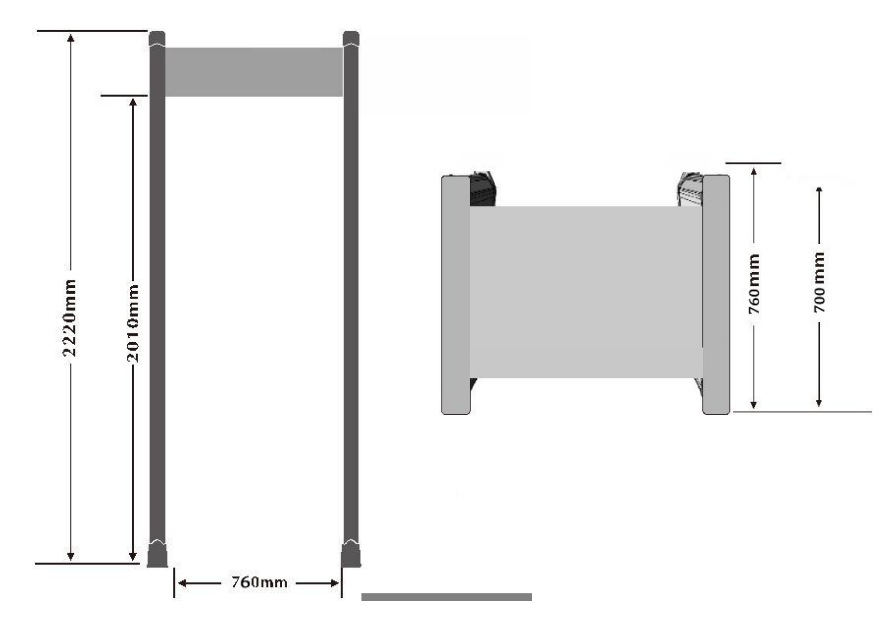

Tunnel Size 200,L-*72,W-*32,H-cm
Dimension 222,L-*85,W-*40,H-cm
Net Weight 35 kg/set
Gross Weight 38kg/set
Package SizeMain Body: 230*42.8*17.5cm(1 set/carton)

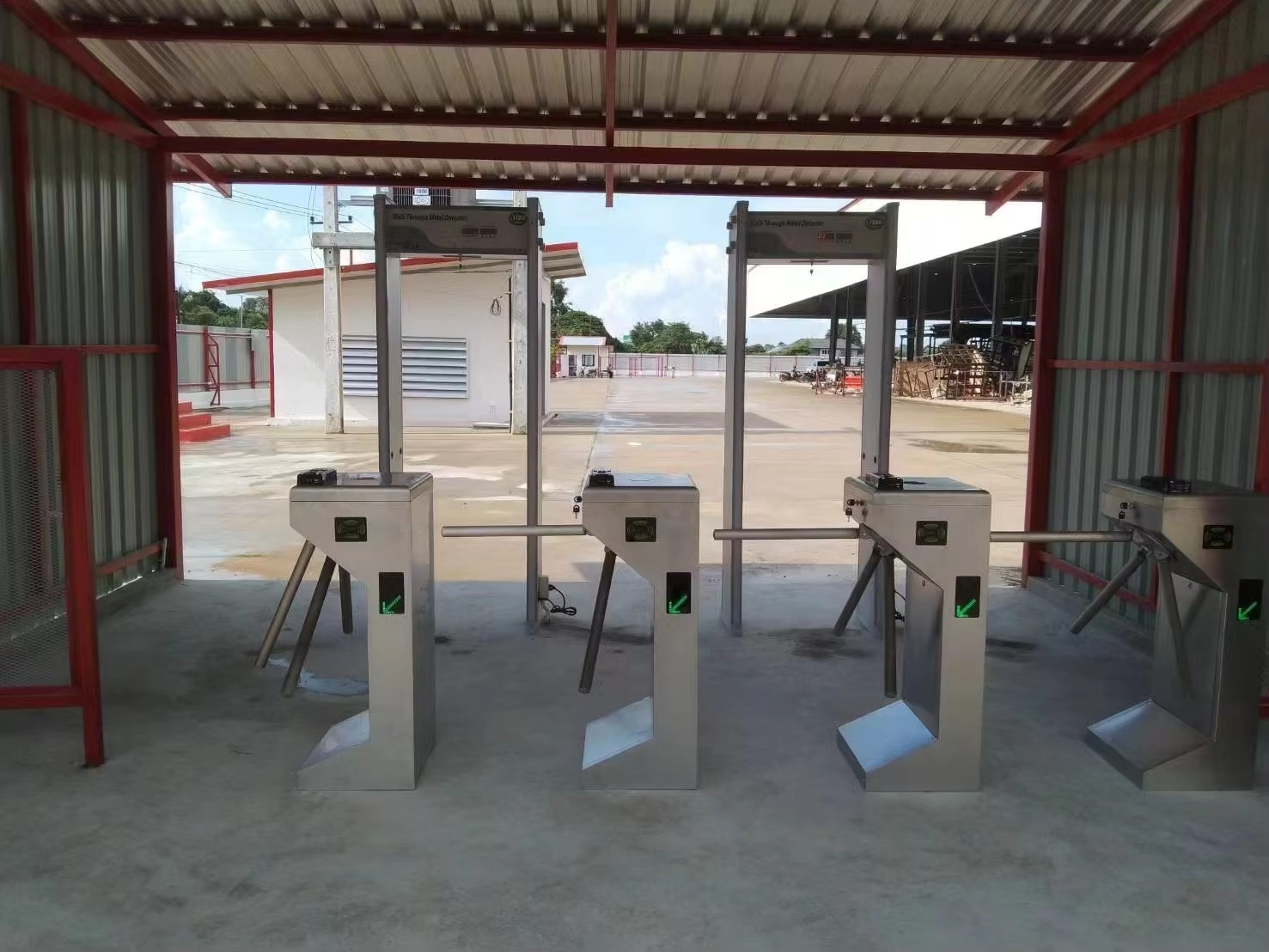

Application Scenarios:
